CrystaLite Skylights High-Quality, Energy Star skylights for your home
Standard Skylight Collection
Standard Skylight Frames
ENERGY STAR NFRC Rated AAMA Tested
5842 Frame PVC / Aluminum
The most common curb mount frame. Features a PVC interior frame (providing an excellent thermal break) and a bronze or clear anodized aluminum cap. Custom sizes are available. High Load glazing available.
NFRC Rated AAMA Tested PVC Free
3962 Frame Aluminum
Standard aluminum frame, also available as an opener. High Load glazing available.
ENERGY STAR NFRC Rated AAMA Tested PVC Free
ES Skylight Aluminum
Combines the weather-tight 3962 aluminum frame and the aluminum thermal break Energy Saver (ES) Panel. Also blocks heat-loss through the curb. Constructed without any "Red List" materials often restricted by some green standards.
PVC Free
ES Panel Drop-In Frame Aluminum
A retrofit solution for existing skylights. Utilizing high performance glass and an aluminum thermal-break drop-in frame design, it is estimated that it will at least double the thermal performance of most existing skylights! The ES Panel also blocks the heat-loss through the curb.
Standard Key Features
Weather-Proof Lid
Available in multiple sizes, and designed to be a snug but flexible fit over a properly flashed curb, like a "lid on a shoebox".
Aluminum Exterior Cap
Bronze or clear anodized finish. Custom paint available.
High Performance Glazing
Featuring Cardinal IG LoE 366. Lowest failure rate in the industry.
Welded Interior & Exterior Frames
Weather-tight construction. Vinyl frame shown. All aluminum options available.
Condensation Gutter
Excessive moisture control. Weeps to the exterior.
Dome Skylight Collection
Dome Skylight Frames
ENERGY STAR NFRC Rated AAMA Tested
5842 Frame PVC / Aluminum
This is our most common curb mount frame featuring a PVC interior frame and a bronze or clear anodized aluminum cap. The PVC interior provides an excellent thermal break. Custom sizes are available. High Load glazing available.
ENERGY STAR NFRC Rated AAMA Tested PVC Free
5000 Frame Aluminum
A revolutionary frame design maximizes glazing thermal performance and minimizes curb heat loss to provide unmatched NFRC Rated thermal properties without the need for expensive nanogel fill substrate. Constructed without any "Red List" materials often restricted by some green standards. Specifically, it is PVC-free.
NFRC Rated AAMA Tested PVC Free
3962 Frame Aluminum
Standard aluminum frame, also available as an opener. High Load glazing available.
PVC Free
ES Panel Drop-In Frame Aluminum
A retrofit solution for existing skylights. Utilizing high performance glass and an aluminum thermal-break drop-in frame design, it is estimated that it will at least double the thermal performance of most existing skylights! The ES Panel also blocks the heat-loss through the curb.
Dome Key Features
Multiple Shapes

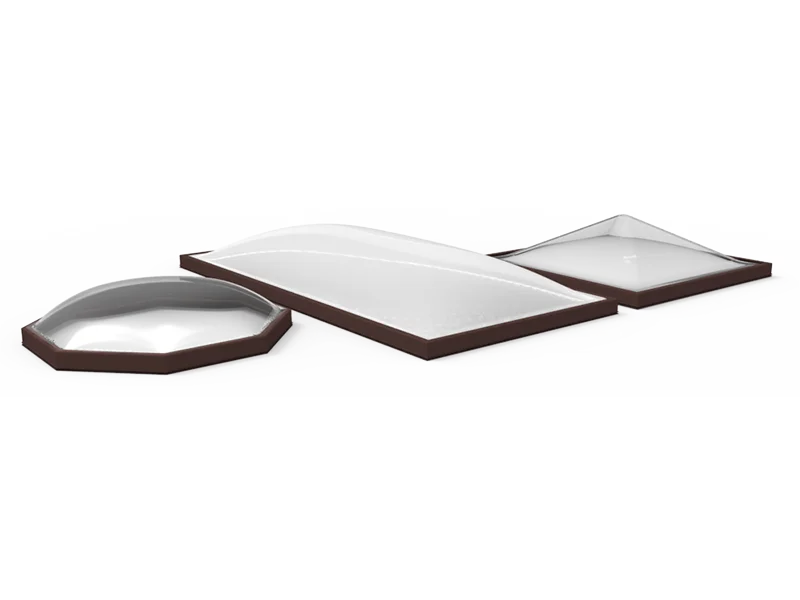

Dome skylights are also available as "formed pyramids", as well as in segmented circular frames.
Weather-Proof Lid
Available in multiple sizes, and designed to be a snug but flexible fit over a properly flashed curb, like a "lid on a shoebox".
Venting Skylight Collection
Venting Skylight Frames
ENERGY STAR NFRC Rated AAMA Tested
5830 Frame PVC / Aluminum
The most popular opening skylight frame features a PVC interior. A PVC leg drops down into the light well which provides a flat surface to attach the chain drive Truth opener, aligning flush with interior drywall. The chain passes through a slot in the inner frame which allows the bug screen to cover the entire daylight without interruption.
Option for hand crank (Truth angle drive) vs. 6'-10' pole (Truth straight drive). Screen is standard. Designed for standard 1-1/2" thick curbing only. High Load glazing available.
NFRC Rated AAMA Tested PVC Free
3921 Frame Aluminum Thermal Break
The 3921 frame does not include an interior frame portion and does not require interior drywall to be cut back from the top of the curb. However, not having such prohibits a means for the operator chain to pass through, thus requiring wickets in the screen.
Tubular Skylight Collection
Tubular Key Features
Hurricane Tested & Approved
Using high-quality materials, these skylights are designed around performance, backed with a 25-year Transferable Warranty. They have also underwent numerous tests and have successfully passed to achieve the rating of "Hurricane Approved".
Great Light Output
Can illuminate between 150 sq. ft. (up to 300 watts) and 700 sq. ft. (up to 1,400 watts) depending on the size (10", 13", 18", or 21").
Accessories
Accessories include light kits, exhaust vents, adjustable elbows, and remote controlled dimmers. Contact Lake City Roofing for more details, and to help you find a skylight configuration that is best suited for your needs.
Glazing Options
Glass Glazing
CrystaLite has partnered with Cardinal IG as a primary insulated glass unit provider, to offer the highest quality glass available. Cardinal's superior quality is backed with an unmatched warranty on the insulated glass units and the lowest failure rate in the industry. Cardinal LoE3 366 with Argon Gas is our standard glass option. We offer numerous other glazing options as well to fit your projects needs.
High / Snow Load Glazing
Tested and certified high load glazing options - capable of meeting the most severe snow load requirements.
Dome Glazing
Glass glazed skylights require at least a 2/12 pitched roof for installation. For flat and low pitched roofs, dome glazing is available in standard frames (except 5843) and are available in single, double, and triple layers to meet your energy design needs.
UV Stablized, Impact-Modified Acrylic is standard. Co-polyester and polycarbonate is available. Standard colors include clear, white, and bronze.
