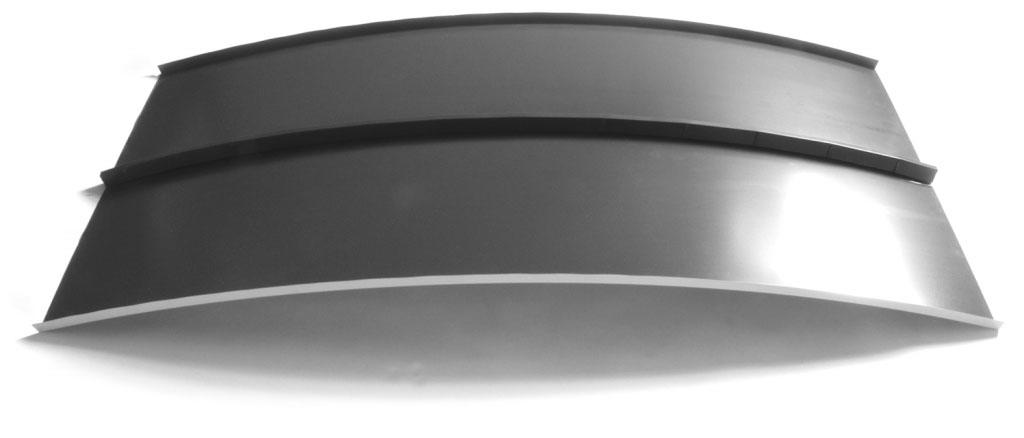

Taylor Metal Products T- panels are designed for use on residential and commercial structures. The T-Panel and separate narrow batten are perfect for radius entries, or entire roofs.
Features & Benefits
- 12? to 20? Coverage
- Pre-curved panels to fit radiusroof area, radius down to 30?
- Pre-curved battens and gables
- Incorporates nicely with Easy-Lock Standing Seam panel
- Concealed fastenersClip system
- Custom cut to length: 20? to 65'
- 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanized or AZ-50
- 24 or 22 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
- 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanized or AZ-50: Select colors, see data sheet for details
- .032 Kynar 500 Painted Aluminum
- 16 and 20 ounce Copper
- 19Standard Colors, 5 Metallic Colors and 5 Specialized Colors
- Kynar 500 Paint System-the ultimate in exterior durability and color retention
- Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)
Standard Cool Kynar500 Colors
Metallic Cool Kynar 500 & Specialized Materials
