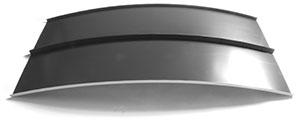

Taylor Metal Products T- panels are designed for use on residential and commercial structures. The T-Panel and separate narrow batten are perfect for radius entries, or entire roofs.

Features & Benefits

  • 12? to 20? Coverage
  • Pre-curved panels to fit radiusroof area, radius down to 30?
  • Pre-curved battens and gables
  • Incorporates nicely with Easy-Lock Standing Seam panel
  • Concealed fastenersClip system
  • Custom cut to length: 20? to 65'

Material Specifications

  • 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanized or AZ-50
  • 24 or 22 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
  • 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanized or AZ-50: Select colors, see data sheet for details
  • .032 Kynar 500 Painted Aluminum
  • 16 and 20 ounce Copper


Finishes

  • 19Standard Colors, 5 Metallic Colors and 5 Specialized Colors
  • Kynar 500 Paint System-the ultimate in exterior durability and color retention
  • Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)

Colors


Standard Cool Kynar500 Colors


Metallic Cool Kynar 500 & Specialized Materials
