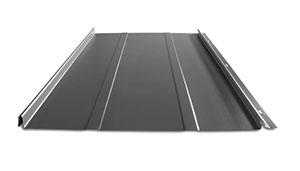

The Premier-Lock Standing Seam has the anti-capillary dry lock seam. Its designed with softer, less industrial lines to provide a more architecturally pleasing appearance.Features & Benefits
- 12 to20coverage options
- 26, 24 and 22 gauge Tru-Gauge
- Factory-notched panels available
- Anti-Capillary dry lock seam
- 1and 1vertical rib
- Concealed fasteners: fasteners cannot leak
- Pre-slotted fastener flange: allowsexpansion/contraction of panel
- UL580 Class 90: Dade impact: Dade 90Dade 140 MPH: UL Class 4 hail: ASTM 283
- UL Class A Fire & Impact Rated
- ASTM 330: ASTM 331: ASTM E-1592
- 3:12 minimum pitch recommended: for lowerpitches please inquire
- Standard panel lengths 2' to 35': for longerpanels, please inquire
- Pan options: Flat pan, Accent ribs, Striations
Material Specifications
- 26 gauge Kynar 500 Painted Steel.019? (thickness prior to painting) G-90 Galvanizing or AZ-50
- 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanizing or AZ-50
- 24 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
- 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanizing or AZ-50: Select colors, see data sheet for details
- .032 Kynar 500 Painted Aluminum: Select colors, see data sheet for details
- 16 and 20 ounce Copper
Finishes
- 19 Standard Colors, 5 Metallic Colors and 5 Specialized Colors
- Kynar 500 Paint System-the ultimate in exterior durability and color retention
- Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)
Colors
Standard Cool Kynar 500 Colors
Metallic Cool Kynar 500 & Specialized Materials
