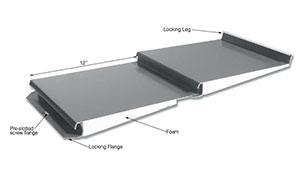

Pacific Pattern panel gives a smooth shingle appearance with 90% fewer seams. This pattern is installed horizontally, beginning at the ridgeline and finishing at eave edge.Features & Benefits
- 12" coverag
- 24 Tru-Gauge (11-7/8? actual coverage)
- Factory applied foam backer makes for a quiet and walkable panel
- Standard panel lengths 2' to 50': (for longerpanels, please inquire)
- Custom flashing for all conditions available
- 1" vertical heigh
- Concealed fasteners: fasteners cannot leak
- UL Class A fire rated
- 4:12 minimum pitch recommended: (for lower pitches please inquire)
Material Specifications
- 26 gauge Kynar 500 Painted Steel.019? (thickness prior to painting) G-90 Galvanizing or AZ-50
- 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting) G-90 Galvanizing or AZ-50
- 24 gauge bare Zincalume plus with Clear Acrylic Coating-AZ-55
- 22 gauge Kynar 500 Painted Steel .029? (thickness prior to painting G-90 Galvanizing or AZ-50: Select colors, see data sheet for details
- .032 Kynar 500 Painted Aluminum: Select colors, see data sheet for details
- 16 and 20 ounce Copper
Finishes
- 11 Standard Colors, 1 Metallic Color and 3 Specialized Colors
- Kynar 500 Paint System-the ultimate in exterior durability and color retention
- Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
- Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
- 40-year residential paint warranty
- 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)
Colors
Standard Cool Kynar 500 Colors
Metallic Cool Kynar 500 & Specialized Materials
