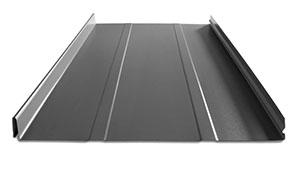

Clip-Lock system is a strong, durable, versatile, and long length panel roof. It combines the strength of steel, striated pans, and a lock-action rib design. Which together with concealed fasteners gives you a weather tight roof to keep you dry.

Features & Benefits

  • 12? to 21? coverage options
  • 26 and 24 gauge Tru-Gauge
  • Factory-notched panels available
  • Floating clip system: allows forexpansion/contraction of panels inlonger lengths
  • 1? and 1? vertical rib
  • Concealed fasteners: fasteners cannot leak
  • UL580 Class 90: Dade impact: Dade 90:Dade 140 MPH: UL Class 4 hail: ASTM 283:ASTM 330: ASTM 331: ASTM E-1592
  • UL Class A Fire & Impact Rated
  • 3:12 minimum pitch recommended: for lowerpitches please inquire
  • Standard panel lengths 2' to 65': for longerpanels, please inquire
  • Pan options: Flat pan, Accent ribs, Striations

Material Specifications

  • 26 gauge Kynar 500 Painted Steel .019? (thickness prior to painting) G-90 Galvanized or AZ-50
  • 24 gauge Kynar 500 Painted Steel.0236? (thickness prior to painting)G-90 Galvanized or AZ-50
  • 26, 24 & 22 gauge bare Zincalume Plus with ClearAcrylic Coating-AZ-55
  • 22 gauge Kynar 500 Painted Steel.029? (thickness prior to painting)G-90 Galvanized or AZ-50: See data sheet for select colors
  • .032 Kynar 500 Painted Aluminum: See data sheet for select colors
  • 24 gauge Bonderized (G-90)
  • 16 and 20 ounce Copper

Finishes

  • 19Standard Colors, 5 Metallic Colors and 5 Specialized Colors
  • Kynar 500 Paint System-the ultimate in exterior durabiity and color retention
  • Cool color pigments are specially designed to reflect infrared light, reducing heat gain todwelling, and conform with ENERGY STAR criteria
  • Superior quality, two-coat, 70% resin finish, applied at a 1 mil. thickness
  • 40-year residential paint warranty
  • 20 and 30 year commercial paint warranty:(Contact TMP for warranty specifications)

Colors


Standard 24g Cool Kynar 500 Colors


Metallic Cool Kynar 500 & Specialized Materials
